The Original Fernco Connection

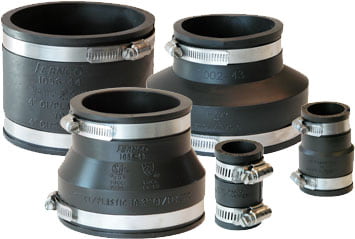

Standard Flexible Couplings

The flexible coupling that started it all. Built for dependable pipe connections across a wide range of sizes and materials.

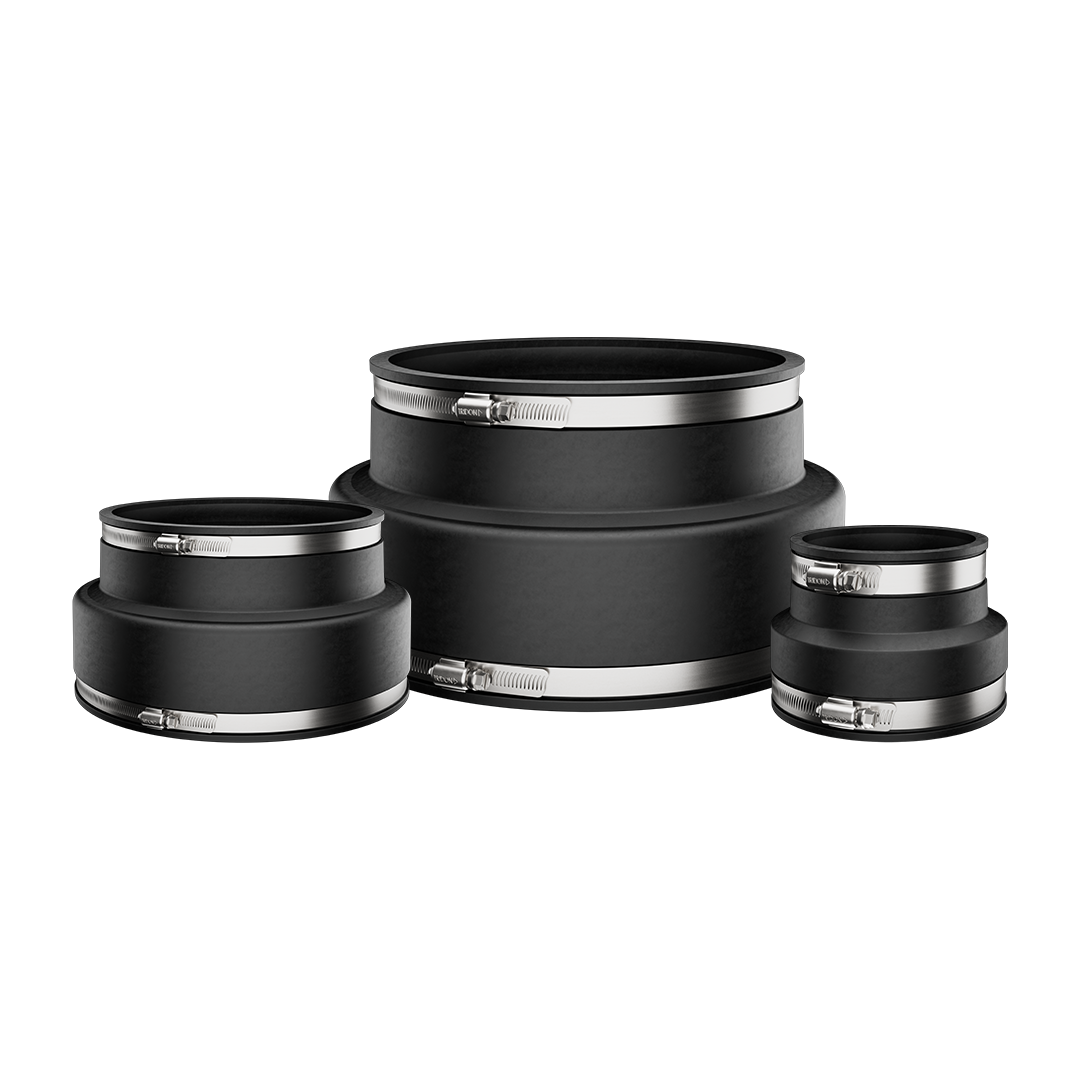

Group Photo.png

Proven by Decades in the Field

Fernco manufactures one of the most complete selections of flexible pipe couplings in the industry. Their dimensional flexibility allows contractors to make secure connections across variations in pipe size and material while maintaining a positive seal.

  • Proven Performance: Tested designs backed by decades of reliable field performance.
  • Dependable Sealing: Provides a positive seal against infiltration and exfiltration.
  • Versatile Connections: Connects same or different pipe sizes and materials.
  • Easy Identification: Each coupling is clearly marked with its part number, size and compatible pipe materials.

Specifications

Features

  • Made in the USA: 15" and below are AIS and BABA Compliant
  • Positive seal against infiltration and exfiltration
  • Resistant to chemicals, ultraviolet rays, fungus growth and normal sewer gases
  • Conforms to ASTM D5926, ASTM C1173 and CSA B602
  • Stainless steel clamps are corrosion-resistant and rustproof

Technical

  • Installation Torque: 60 in-lbs.
  • Maximum Test Pressure: 4.3 PSI (29.6 KPA)
  • Maximum Operating Temperature: 140° F non-consistent
  • Minimum Operating Temperature: -30° F

A Connection Contractors Know

Fernco Standard Couplings provide a simple, dependable way to connect pipe. Available in sizes from 3/4" through 27", the line accommodates a broad range of pipe materials, diameters and transition applications.

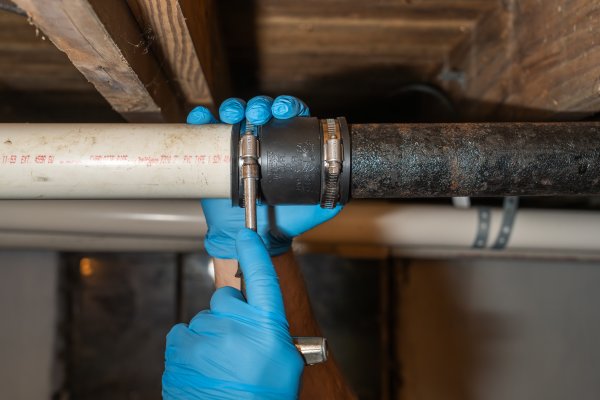

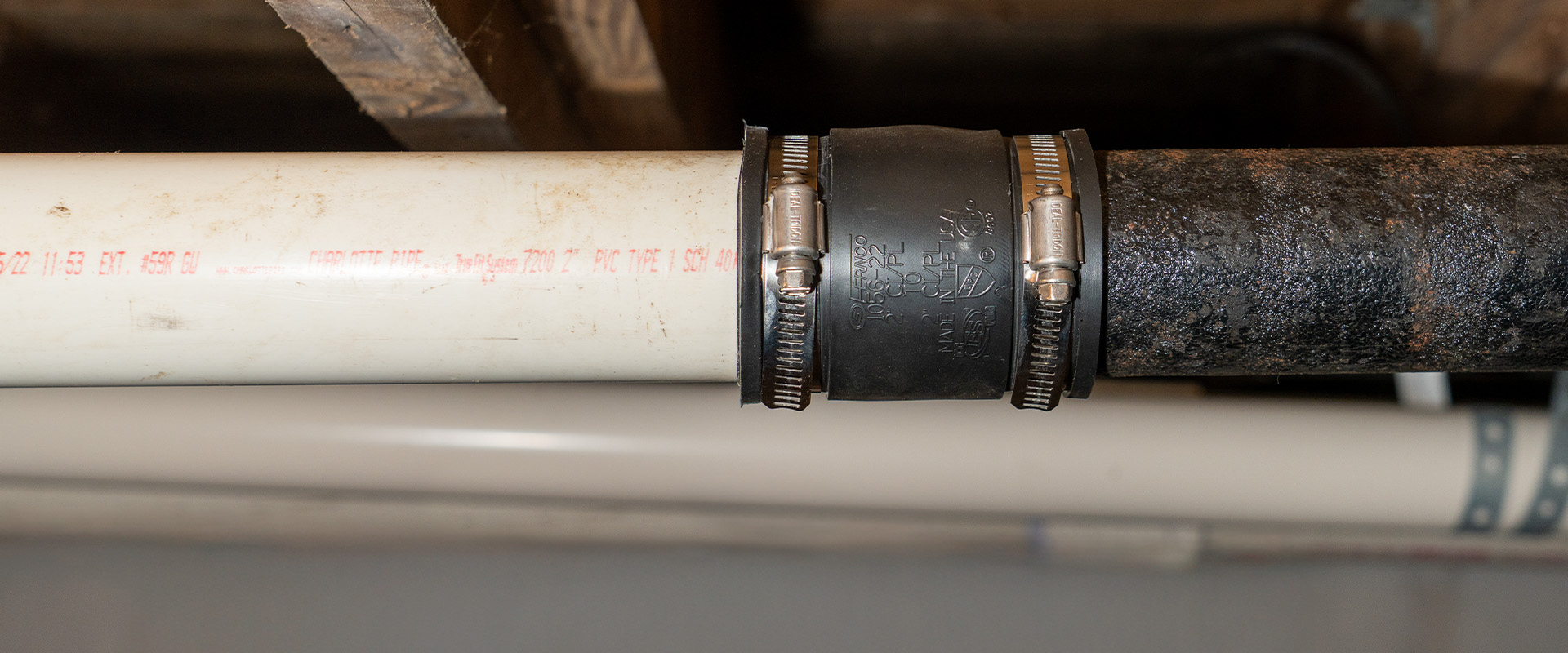

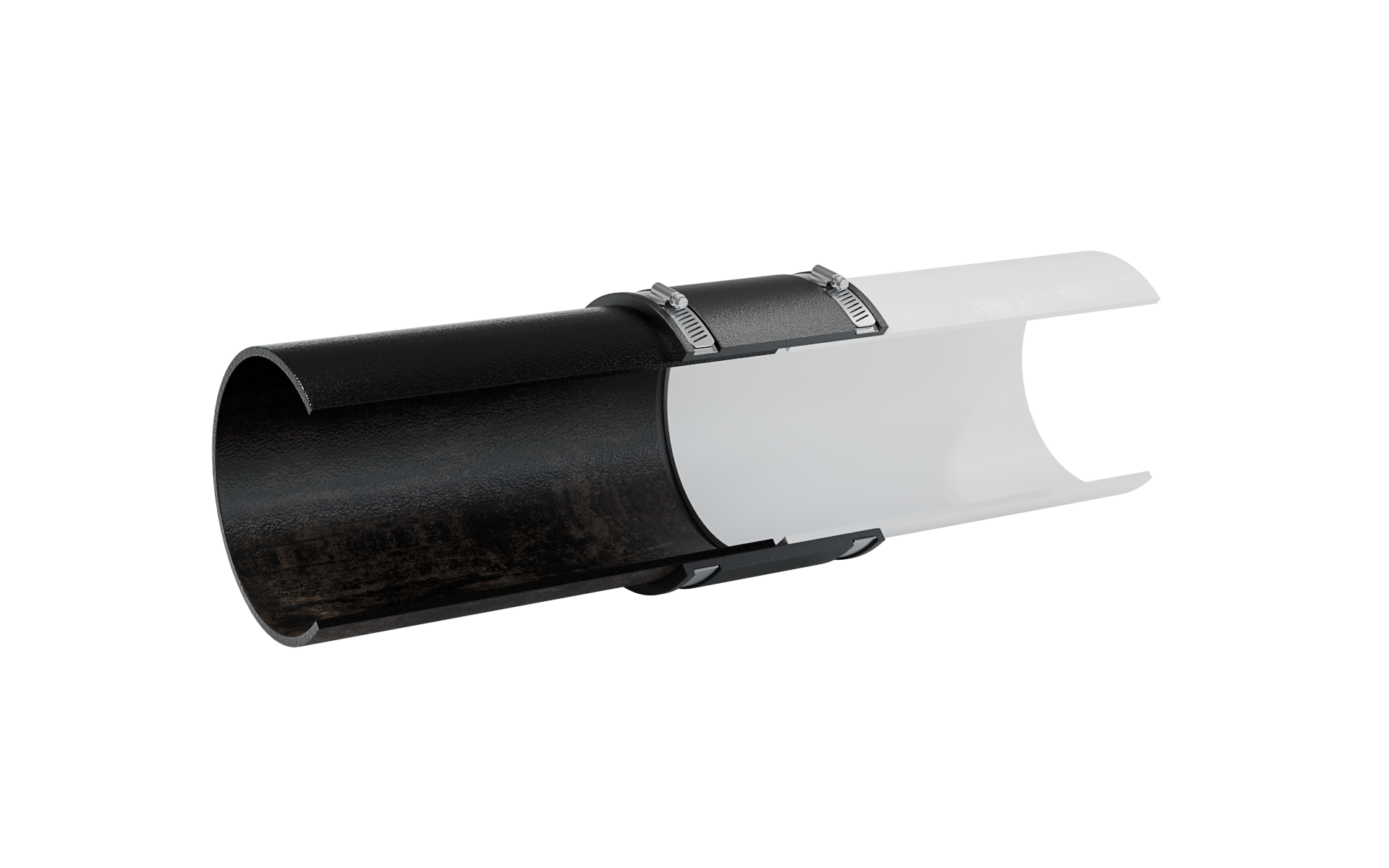

Cutaway view of Fernco Standard Coupling connecting cast iron to PVC

One Coupling. A Secure Transition.

Flexible coupling geometry allows Fernco to accommodate differences in outside diameter while creating a secure connection between compatible pipe materials.

Stainless steel clamps provide uniform compression around the coupling, while the flexible elastomeric body conforms to the pipe for a dependable seal.

Find the Right Series for the Connection

Fernco Standard Couplings are designed around the outside diameters of the pipe materials being connected. Start with the pipe types on each side of the connection.

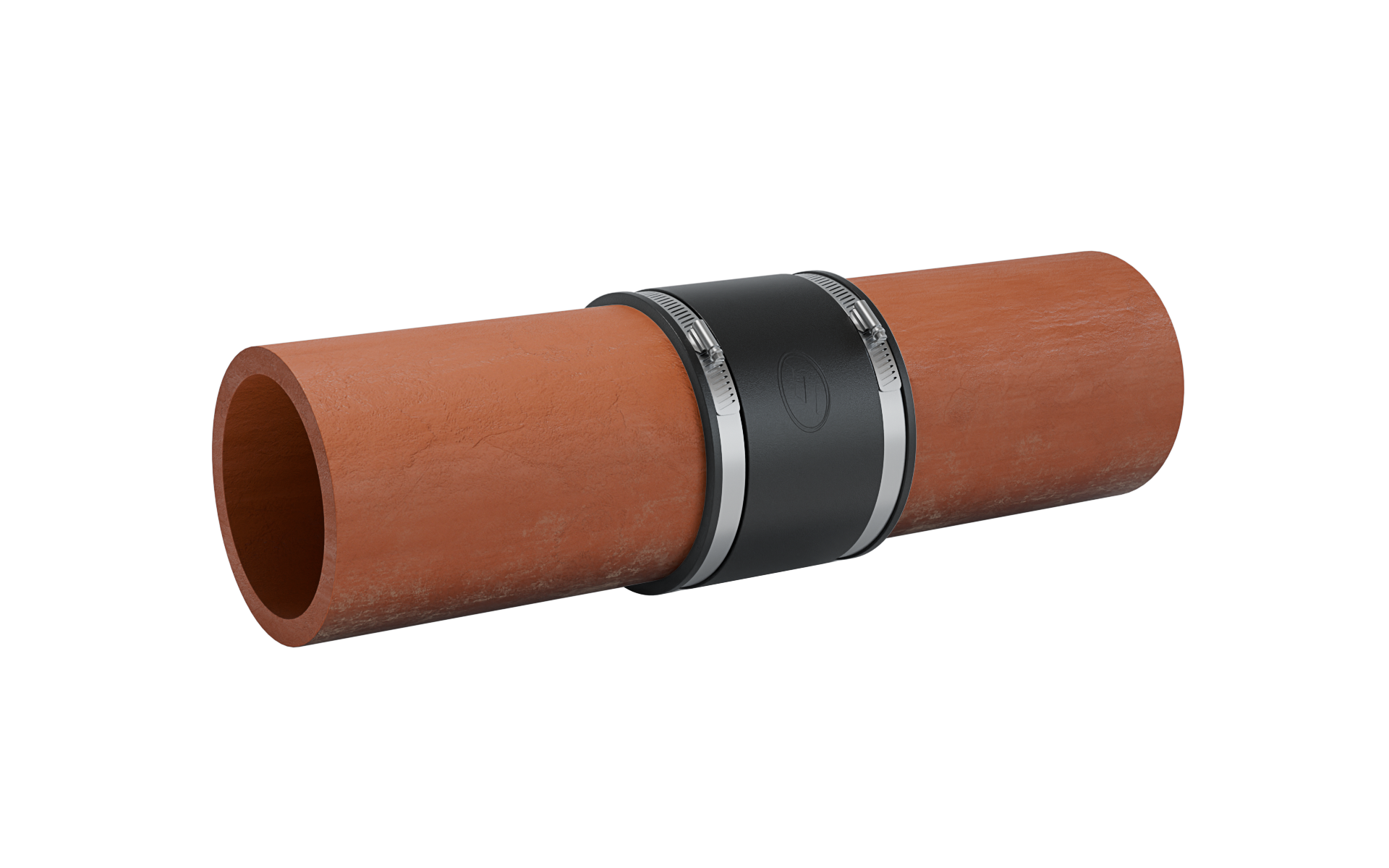

Fernco 1001 Series coupling
1001 Series

Clay to Clay

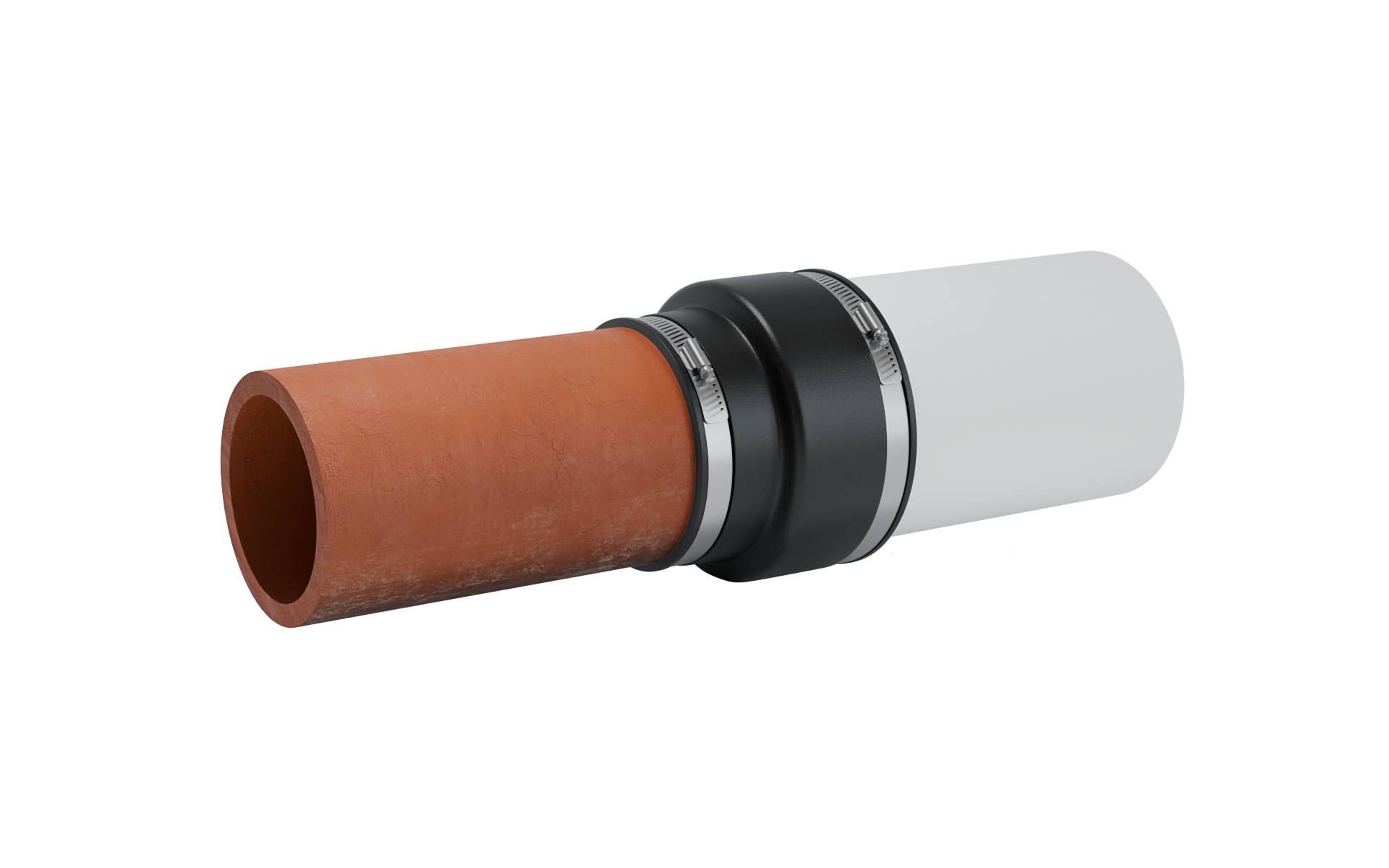

Fernco 1002 Series coupling
1002 Series

Clay to Cast Iron / Plastic / Steel

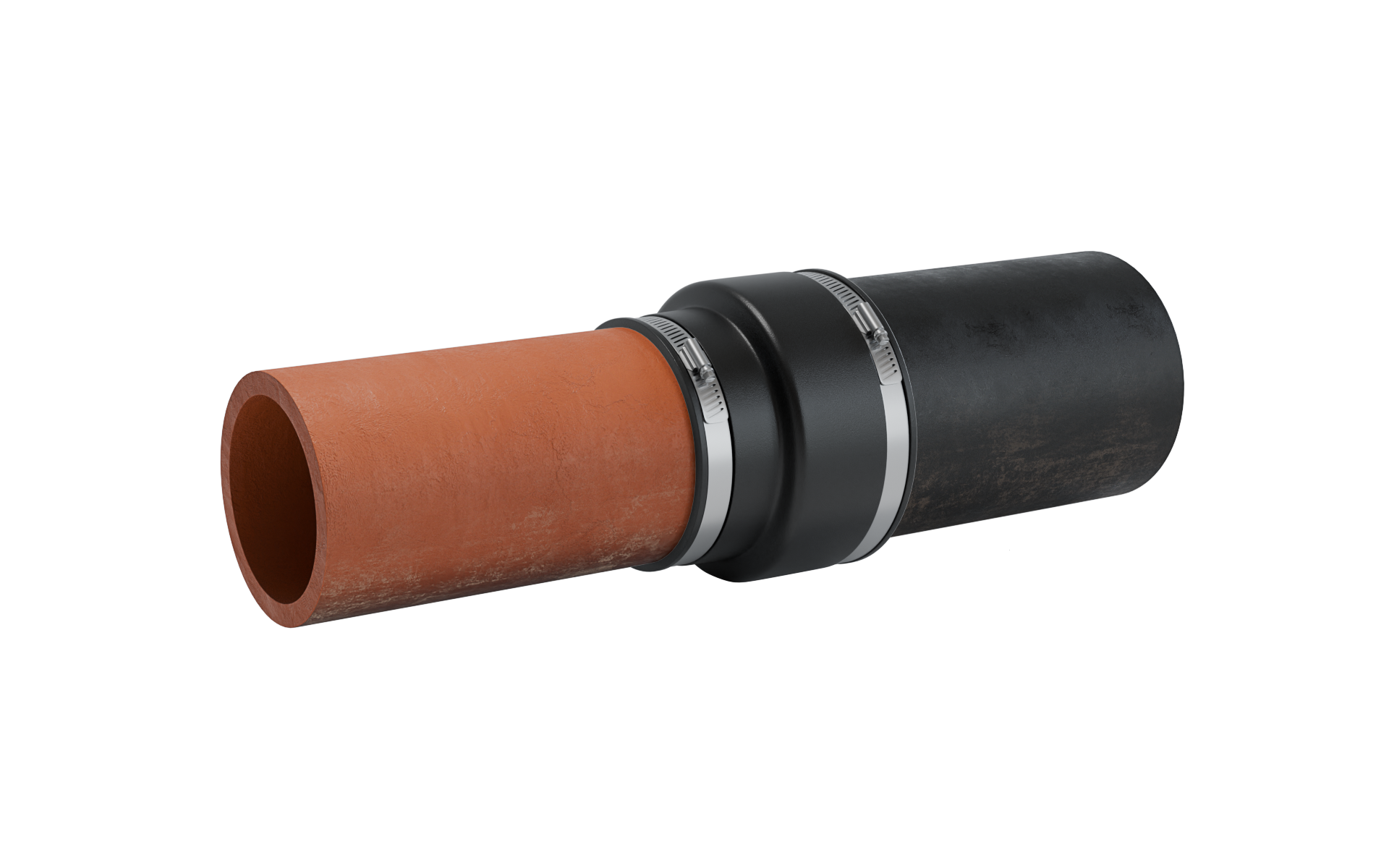

Fernco 1003 Series coupling
1003 Series

Clay to Ductile Iron

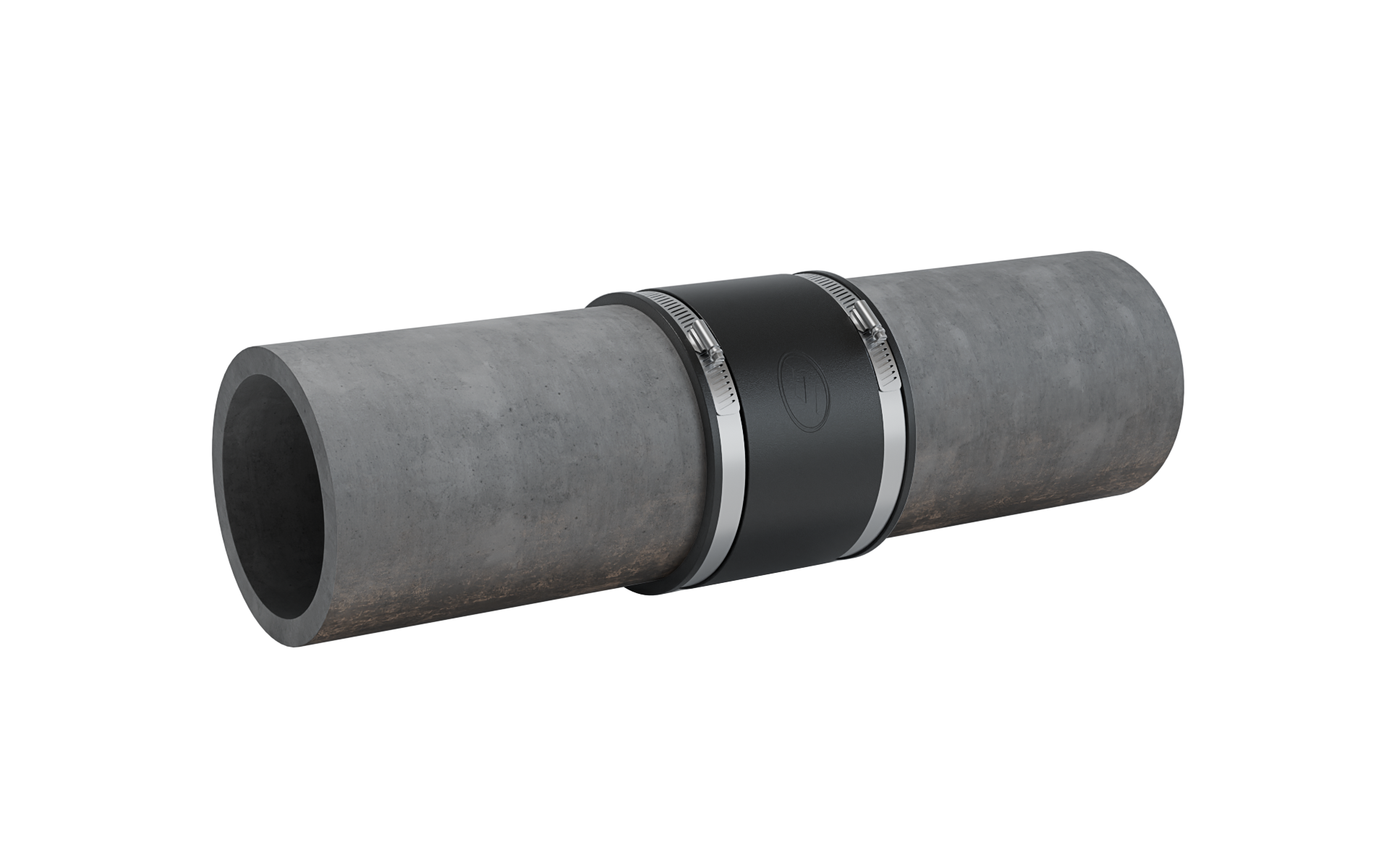

Fernco 1004 Series coupling
1004 Series

Concrete to Concrete

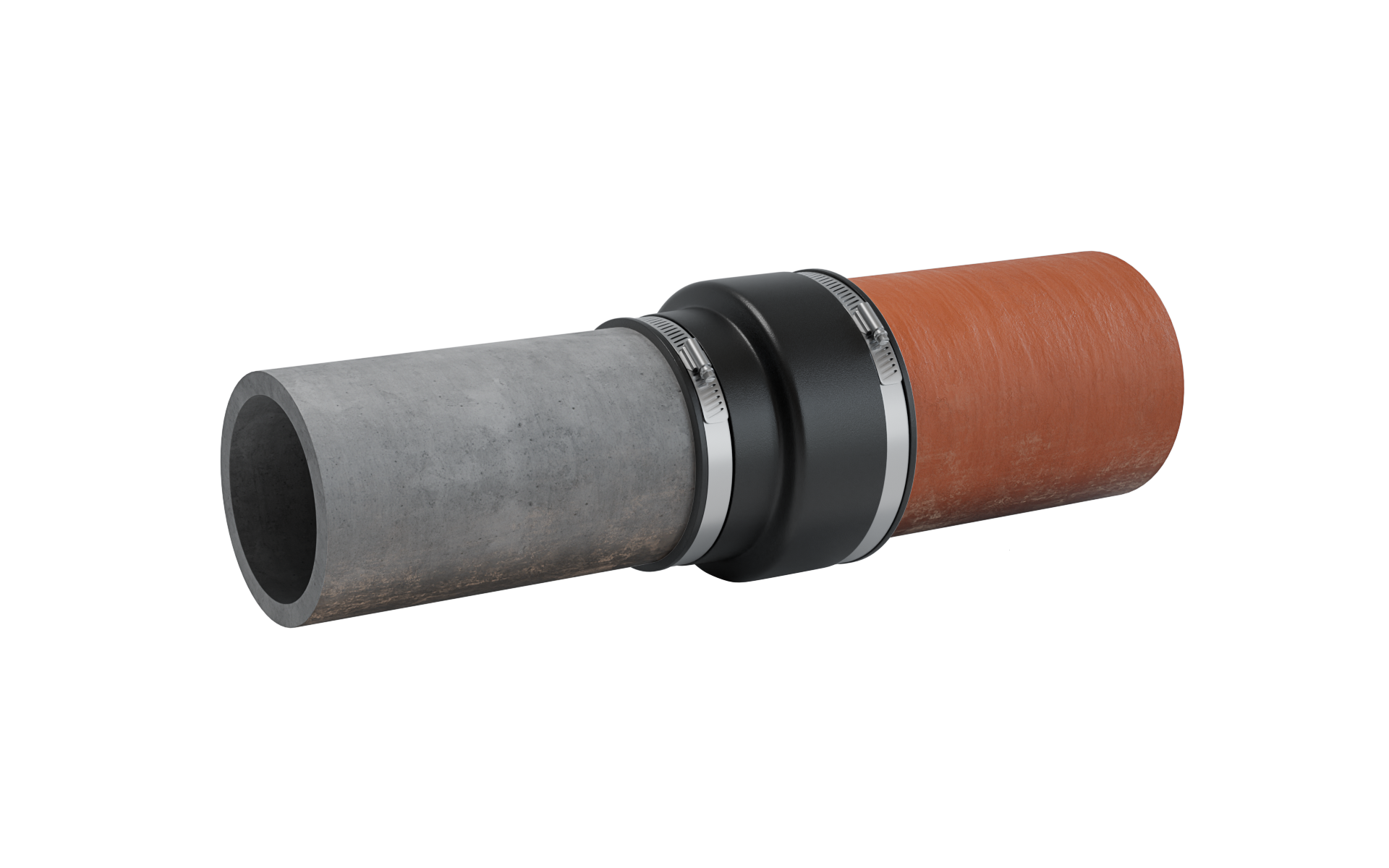

Fernco 1005 Series coupling
1005 Series

Concrete to Clay

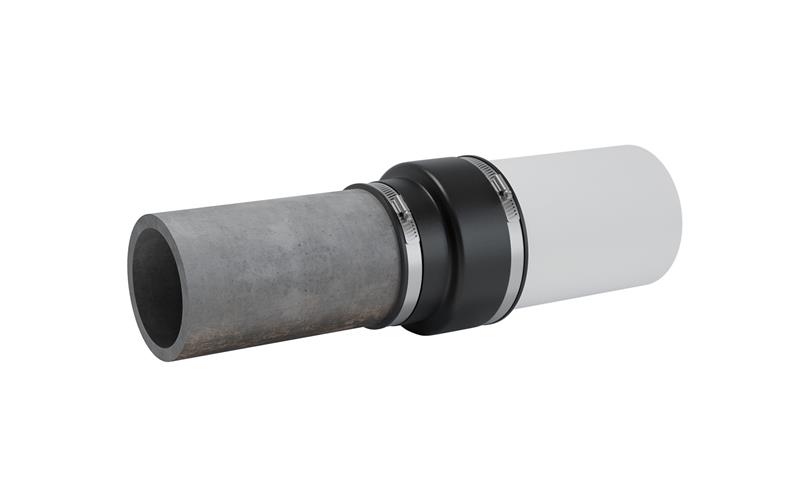

Fernco 1006 Series coupling
1006 Series

Concrete to Cast Iron / Plastic / Steel

Fernco 1051 Series coupling
1051 Series

Ductile Iron to Cast Iron / Plastic / Steel

Fernco 1056 Series coupling
1056 Series

Cast Iron / Plastic / Steel to Cast Iron / Plastic / Steel

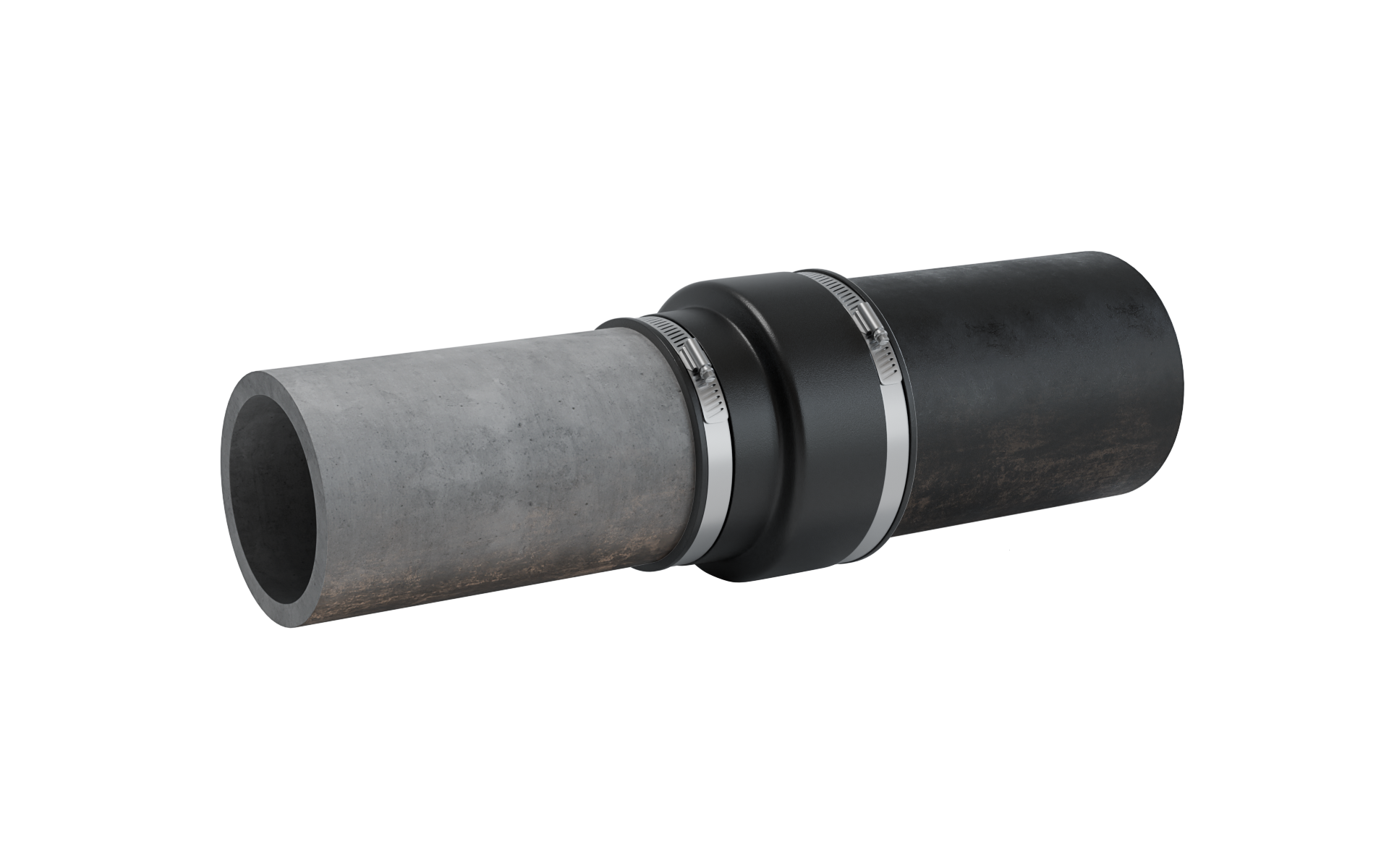

Fernco 1057 Series coupling
1057 Series

Concrete to Ductile Iron

Need Help Finding the Right Coupling?

Tell us what pipe materials and sizes you're working with and our team can help point you toward the right Fernco connection.
