Fernco Qwikseal
- Powerful Versatility – Qwikseal lateral connectors by Fernco deliver a strong, water-tight seal for a wide range of pipe sizes and materials, ensuring reliable performance in any application.
- Hassle-Free Installation - Installs cleanly without disturbing bedding, requiring no glues, epoxies, grout, or difficult to use hubs.
- Minimal Excavation - Provides access to new, existing, and rehabilitated sanitary and storm lines with minimal excavation, saving time and reducing hassle.
PRODUCT DESCRIPTION

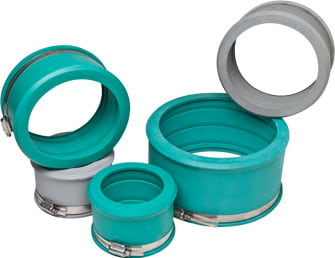

QwikSeal by Fernco is a groundbreaking solution for tapping into new, existing, and rehabilitated sanitary and storm lines with minimal excavation, saving time and reducing hassle. This product not only simplifies the installation process but also minimizes inventory needs by connecting with virtually any pipe material. Its versatile lineup accommodates concrete, clay, and solid-wall plastic pipes, ensuring reliable performance in any situation.
Featuring easy-to-identify colors for straightforward installation, QwikSeal eliminates the need for glues, epoxies, grout, or complex gaskets. Compliant with ASTM C 923 standards, QwikSeal delivers a high-performance seal that withstands up to 10 PSI and handles up to 7° of deflection in concrete manholes. Proudly made in the USA, QwikSeal stands as a robust, efficient choice for professionals seeking quality and versatility.

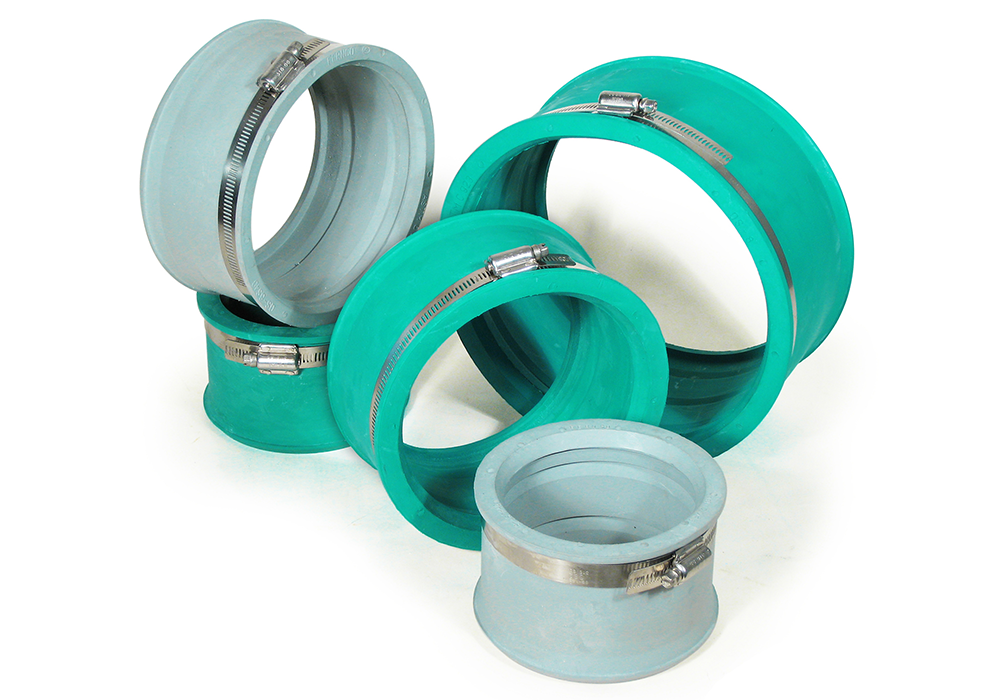

QWIKSEAL PRODUCT LINEUP
| Part No. | Pipe Inlet | Color | Host Pipe Size Application |
|---|---|---|---|
| QS-4 | 4" SDR | GREEN | 8" Diameter or larger concrete, clay or solid-wall plastic pipe or 8" - 24" corrugated plastic pipe |
| QS-4S40 | 4" SCH-40 | GREY | 8" Diameter or larger concrete, clay or solid-wall plastic pipe or 8" - 24" corrugated plastic pipe |
| QS-6 | 6" SDR-35 | GREEN | 10" Diameter or larger concrete, clay or solid-wall plastic pipe or 10" - 24" corrugated plastic pipe |
| QS-6S40 | 6" SCH-40 | GREY | 10" Diameter or larger concrete, clay or solid-wall plastic pipe or 10" - 24" corrugated plastic pipe |
| QS-8 | 8" SDR-35 | GREEN | 10" Diameter or larger concrete, clay or solid-wall plastic pipe or 10" - 24" corrugated plastic pipe |
SPECIFICATIONS:
- Meets ASTM Standards - Gasket material complies with ASTM C 923 standards, ensuring quality performance.
- Clamp
1. 316 Stainless steel
2. 60 inch-lb. installation torque
3. 6 inch-lb. free torque maximum
4. 150 inch-lb. Ultimate torque minimum - Made in the USA - QwikSeal lateral connectors are proudly made in the United States.
- Water-Tight Compression Seal - Ensures a water-tight compression seal up to 10 PSI and handles up to 7° of deflection in concrete manholes.

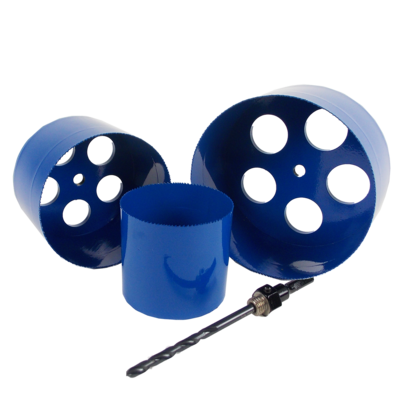

CORING BITS FOR PLASTIC
Tempered steel hole saw for coring all types of plastic pipe, even high-profile corrugated pipe.
- Available in 5", 7" and 9" OD
- Economical, lighter and easy to handle
- For use with low speed - high torque hand drills
| Part No. | Description |
|---|---|
| QS-5x4HS | 5" OD x 4" Deep Hole Saw with Arbor |
| QS-7x4HS | 7" OD x 4" Deep Hole Saw with Arbor |
| QS-9x4HS | 9" OD x 4" Deep Hole Saw with Arbor |
CORING BITS FOR CONCRETE & CLAY
Diamond tipped abrasive bit used for coring reinforced and non-reinforced concrete and clay pipe materials.
- Available in 5", 7" and 9" OD
- For use with standard coring machines
- Use water as a coolant
| Part No. | Description |
|---|---|
| QS-5x14CB | 5" OD x 14" Length Abrasive Coring Bit |
| QS-7x14CB | 7" OD x 14" Length Abrasive Coring Bit |
| QS-9x14CB | 9" OD x 14" Length Abrasive Coring Bit |

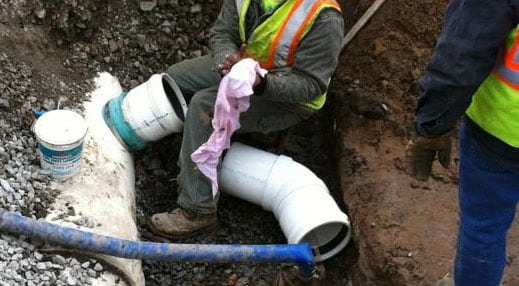

Installation
Core connection hole
Insert Qwikseal
Insert lateral connection pipe
Tighten down to secure
