Fernco Qwik Tees, Wyes & Ells
- Expanded Product Line - Available in Tees, 90° Ells, NEW 45° Ells and Wyes to solve more above-ground DWV repair and alteration challenges.
- Built for Fast Replacements - Extra length fittings are ideal for cutting out and replacing old fittings at the joint.
- No Glue, No Special Tools - Flexible PVC construction and stainless steel clamps make installation quick, clean, and reliable.
PRODUCT DESCRIPTION
Fernco Qwik Tees, Ells, 45° Ells, and Wyes are flexible PVC fittings designed for fast repairs, alterations, and branch connections in above-ground drain, waste, and vent systems. Their extra length makes them ideal for replacing cut-out fittings at the joint, helping simplify jobs where rigid fittings can be difficult to install.
Designed for use with common household DWV pipe materials including cast iron, plastic, steel, copper, and lead, Qwik Tees and Ells install without special tools, primers, or glues. Reducing connections can be made using Fernco Qwik Bushings, giving contractors more flexibility when working through repair and retrofit applications.
QWIK TEES, ELLS & WYES PRODUCT LINEUP
| Product Type | Application | Available Sizes |
|---|---|---|
| Qwik Tees | Create 90° branch connections in above-ground DWV systems | 1-1/2", 2", 3", 4" |
| Qwik Ells | Create 90° directional changes in DWV pipe runs | 1-1/2", 2", 3", 4" |
| NEW 45° Qwik Ells | Create smoother directional changes in drainage systems | 1-1/2", 2" |
| NEW Qwik Wyes | Create angled branch connections for repair and alteration work | 1-1/2", 2" |
Use with Fernco Qwik Bushings when reducing pipe sizes.
FEATURES & BENEFITS:

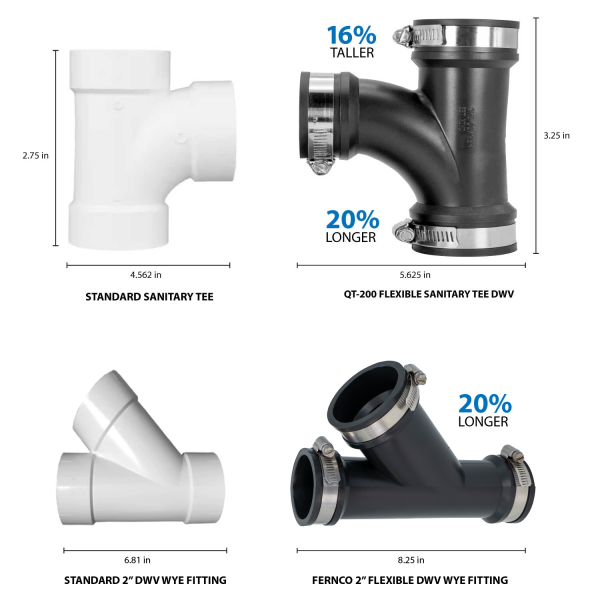

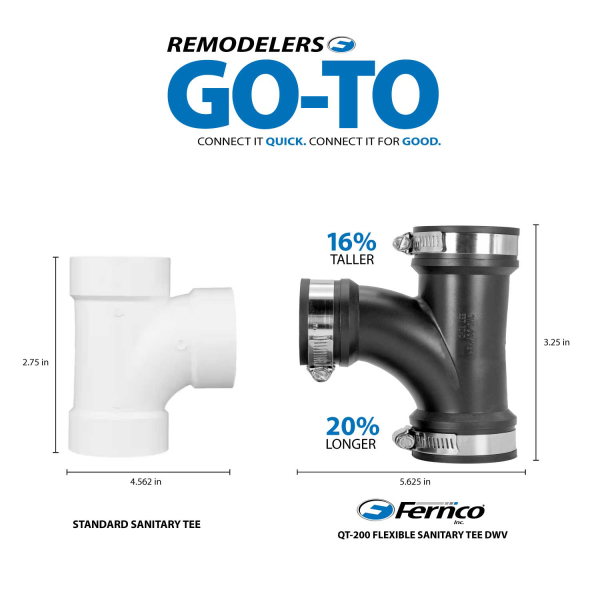

- Extra Length Design - Ideal for replacing fittings at the joint during alteration or repair.
- Flexible Installation - Flexibility helps simplify installation in tight or difficult-to-access areas.
- Expanded Fitting Options - Available in Tees, 90° Ells, new 45° Ells, and Wyes to support more DWV layout needs.
- No Special Tools Required - Installs quickly with stainless steel clamps, without primers, glues, or specialty fittings.
- Reducing Capability - Reducing sizes can be achieved with separately supplied Fernco Qwik Bushings.
- Durable Construction - Made from flexible PVC with 300 series stainless steel clamps.
NEW 45° ELLS & WYES
Fernco’s expanded Qwik Tees & Ells lineup now includes 45° Qwik Ells and Qwik Wyes, giving installers more options when repairing, rerouting, or adding branch connections in above-ground DWV systems.

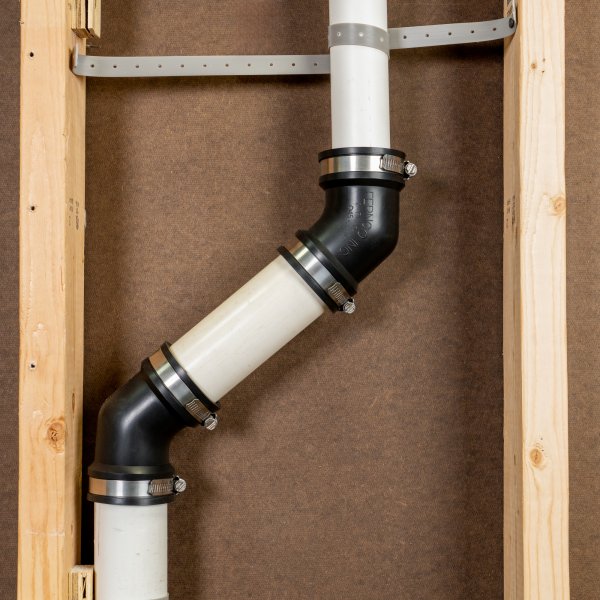

- 45° Qwik Ells - Available in 1-1/2" and 2" sizes for cleaner directional changes and improved layout flexibility.

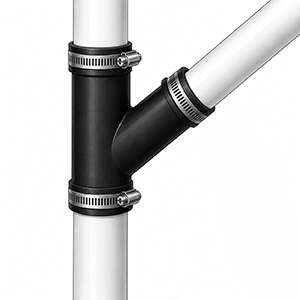

- Qwik Wyes - Available in 1-1/2" and 2" sizes for angled branch connections where a traditional tee may not be the ideal solution.
- Faster Repairs - Designed to help installers adapt to existing piping configurations without cutting back excessive pipe.
- More Jobsite Options - Expands the Qwik fitting family to cover even more common DWV repair and alteration applications.
SPECIFICATIONS
- Application - Designed for above-ground drain, waste, and vent systems.
- Pipe Compatibility - Compatible with cast iron, plastic, steel, copper, and lead pipe.
- Material - Manufactured from flexible PVC with corrosion-resistant 300 series stainless steel clamps.
- Performance - Leak-proof, rot-proof, and resistant to chemicals, UV exposure, fungus growth, and normal sewer gases.
- Standards - Conforms to ASTM D5926.
- Temperature Rating - Maximum operating temperature of 140°F (non-consistent).
- Pressure Applications - Not intended for pressure applications.
Simple Installation

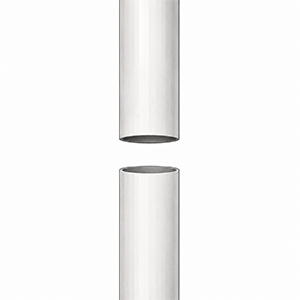

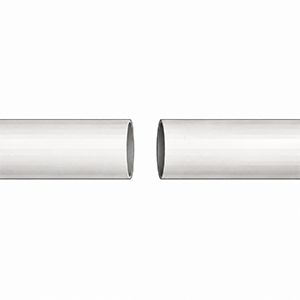

Cut out the old or damaged fitting.

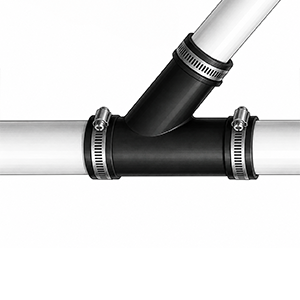

Position the Qwik Tee, Ell, 45° Ell, or Wye over the pipe ends.

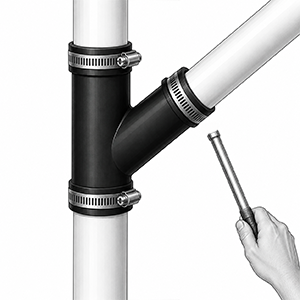

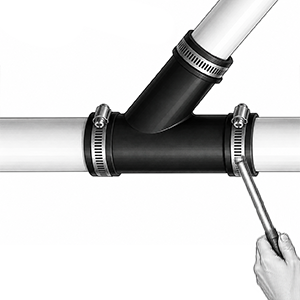

Tighten the stainless steel clamps to secure the connection.
