Corrugated Pipe Couplings
Connect ADS and Hancor corrugated polyethylene pipe to PVC and other plastic pipe, or corrugated to corrugated. Flexible couplings from 3″ to 8″, and Strong Back HTRC shielded couplings from 10″ to 60″.
Made for corrugated drainage pipe.
Tie corrugated polyethylene drainage and irrigation lines into sewer, drain or DWV plastic pipe, or join two runs of corrugated pipe. For storm and sub-soil drainage, farm irrigation and residential work.
Flexible couplings

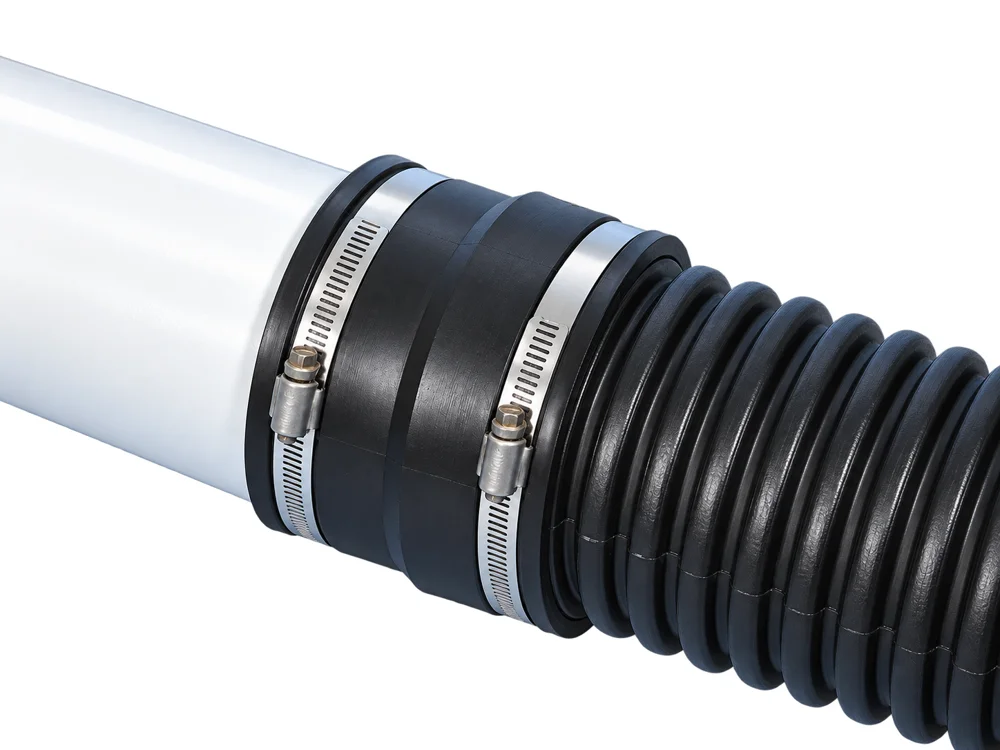

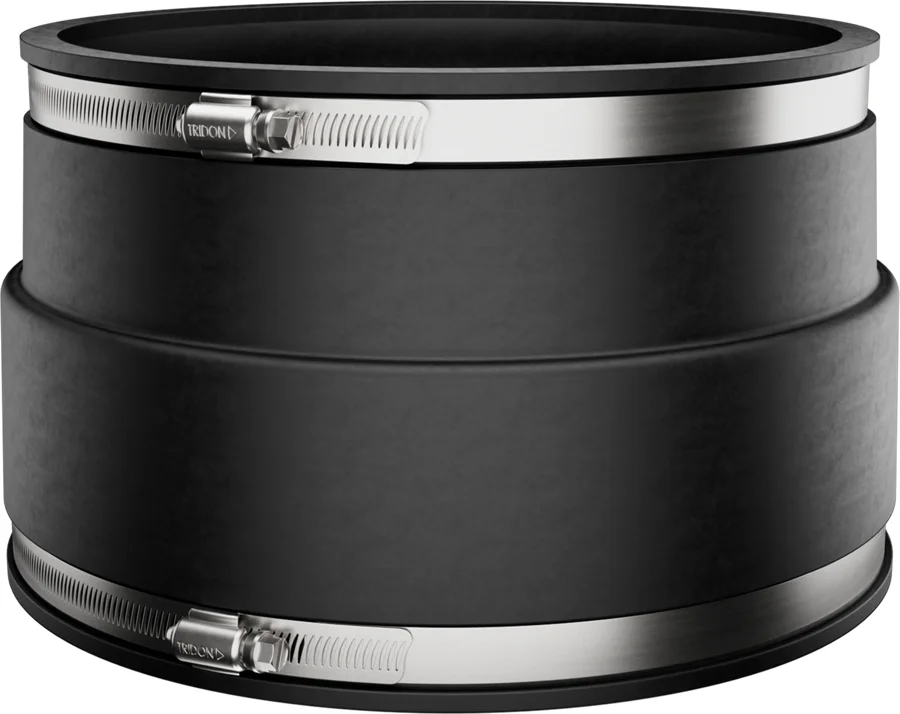

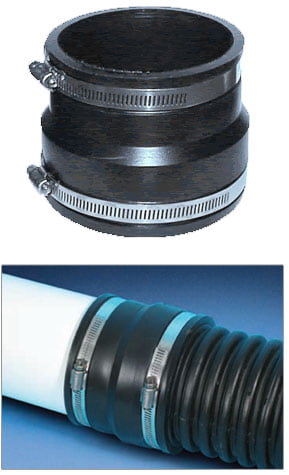

1070 couplings connect corrugated pipe to plastic, in straight and reducing sizes.
Strong Back HTRC shielded
Large diameter couplings with a stainless steel shear ring and high torque clamps.
Straight and reducing
Same-size and reducing sizes across the line, such as 8″ corrugated to 4″ plastic.
To plastic or corrugated
1070 connects corrugated to plastic. 1071 connects corrugated to corrugated.
3″ to 8″ couplings or Strong Back HTRC, 10″ to 60″.
1070 and 1071 RC, 3″ to 8″
Flexible couplings with stainless steel clamps, tightened to 60 in-lb. The 1070 connects corrugated pipe to plastic. The 1071 RC connects corrugated to corrugated.

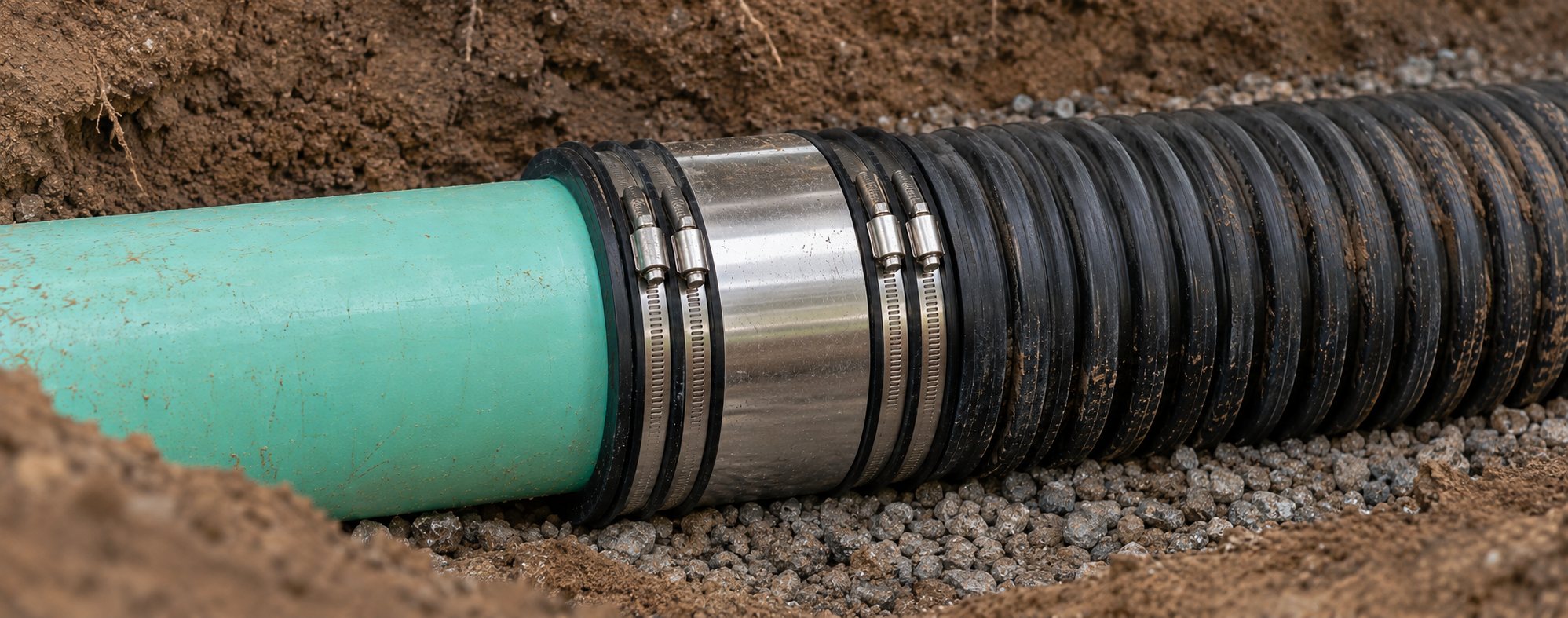

Strong Back HTRC shielded, 10″ to 60″

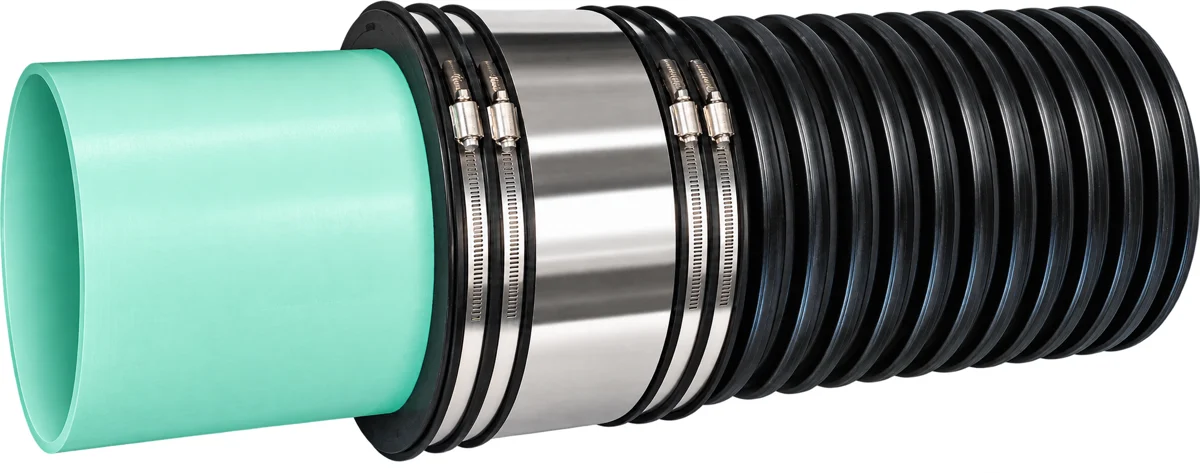

For gravity flow sewer and storm water systems. High torque clamps, tightened to 120 in-lb, are designed for a greater sealing force on corrugated pipe, and a .012″ thick, 300 series stainless steel shear ring helps keep the pipe in line against shear forces from soil compaction, shifting and settling. Shield clamps tighten to 60 in-lb. The flexible PVC gasket makes 360° contact.
About Strong Back RC ›Additional Strong Back HTRC sizes are available on request. Beyond 60″ or an odd O.D.? See Large Diameter Couplings. Conditions vary by region and job. Always follow the project specifications and your local codes and regulations.
Find your size.
Every corrugated part, by series. A is the corrugated pipe end. B is the other end. Dimensions in inches.
1070 series Corrugated to plastic, 3″ to 8″14 parts
| Part | Connects | A | B | Width |
|---|---|---|---|---|
| *1070-32 | 3″ corrugated to 2″ plastic | 3.57″ | 2.38″ | 3.96″ |
| 1070-33 | 3″ corrugated to 3″ plastic | 3.57″ | 3.44″ | 3.96″ |
| *1070-42 | 4″ corrugated to 2″ plastic | 4.76″ | 2.38″ | 3.94″ |
| *1070-43 | 4″ corrugated to 3″ plastic | 4.76″ | 3.38″ | 3.94″ |
| 1070-44 | 4″ corrugated to 4″ plastic | 4.76″ | 4.29″ | 3.94″ |
| 1070-415 | 4″ corrugated to 1½″ plastic | 4.43″ | 1.91″ | 3.95″ |
| *1070-63 | 6″ corrugated to 3″ plastic | 6.83″ | 3.38″ | 5.91″ |
| *1070-64 | 6″ corrugated to 4″ plastic | 6.83″ | 4.38″ | 5.91″ |
| *1070-65 | 6″ corrugated to 5″ plastic | 6.83″ | 5.50″ | 5.91″ |
| 1070-66 | 6″ corrugated to 6″ plastic | 6.83″ | 6.50″ | 5.91″ |
| 1070-83 | 8″ corrugated to 3″ plastic | 9.76″ | 3.50″ | 5.70″ |
| *1070-84 | 8″ corrugated to 4″ plastic | 9.76″ | 4.38″ | 5.70″ |
| *1070-86 | 8″ corrugated to 6″ plastic | 9.76″ | 6.38″ | 5.70″ |
| 1070-88 | 8″ corrugated to 8″ plastic | 9.76″ | 8.42″ | 5.70″ |
1071 RC series Corrugated to corrugated, 3″ to 8″4 parts
| Part | Connects | A | B | Width |
|---|---|---|---|---|
| **1071-33RC | 3″ corrugated to 3″ corrugated | 3.94″ | 3.94″ | 3.97″ |
| **1071-44RC | 4″ corrugated to 4″ corrugated | 4.74″ | 4.74″ | 3.95″ |
| **1071-66RC | 6″ corrugated to 6″ corrugated | 6.90″ | 6.90″ | 5.95″ |
| **1071-88RC | 8″ corrugated to 8″ corrugated | 9.48″ | 9.48″ | 6.00″ |
1070 Strong Back HTRC Corrugated to plastic, 10″ to 48″, shielded18 parts
| Part | Connects | A | B | Width |
|---|---|---|---|---|
| 1070-10-4HTRC | 10″ corrugated to 4″ plastic | 11.60″ | 4.50″ | 6.00″ |
| 1070-10-6HTRC | 10″ corrugated to 6″ plastic | 11.60″ | 6.625″ | 6.00″ |
| *1070-10-8HTRC | 10″ corrugated to 8″ plastic | 11.60″ | 8.40″ | 6.00″ |
| *1070-1010HTRC | 10″ corrugated to 10″ plastic | 11.60″ | 10.50″ | 6.00″ |
| 1070-12-4HTRC | 12″ corrugated to 4″ plastic | 14.40″ | 4.50″ | 10.00″ |
| 1070-12-6HTRC | 12″ corrugated to 6″ plastic | 14.40″ | 6.625″ | 10.00″ |
| 1070-12-8HTRC | 12″ corrugated to 8″ plastic | 14.40″ | 8.625″ | 10.00″ |
| *1070-1210HTRC | 12″ corrugated to 10″ plastic | 14.40″ | 10.50″ | 10.00″ |
| *1070-1212HTRC | 12″ corrugated to 12″ plastic | 14.40″ | 12.50″ | 10.00″ |
| 1070-15-6HTRC | 15″ corrugated to 6″ plastic | 17.70″ | 6.625″ | 10.00″ |
| 1070-1512HTRC | 15″ corrugated to 12″ plastic | 17.70″ | 12.60″ | 10.00″ |
| *1070-1515HTRC | 15″ corrugated to 15″ plastic | 17.70″ | 15.30″ | 10.00″ |
| *1070-1818HTRC | 18″ corrugated to 18″ plastic | 21.30″ | 18.70″ | 10.00″ |
| *1070-2424HTRC | 24″ corrugated to 24″ plastic | 28.10″ | 24.80″ | 10.00″ |
| *1070-3030HTRC | 30″ corrugated to 30″ plastic | 35.40″ | 31.50″ | 10.00″ |
| *1070-3636HTRC | 36″ corrugated to 36″ plastic | 41.60″ | 39.40″ | 10.00″ |
| *1070-4242HTRC | 42″ corrugated to 42″ plastic | 47.70″ | 44.50″ | 10.00″ |
| *1070-4848HTRC | 48″ corrugated to 48″ plastic | 54.10″ | 50.80″ | 10.00″ |
1071 Strong Back HTRC Corrugated to corrugated, 10″ to 60″, shielded13 parts
| Part | Connects | A | B | Width |
|---|---|---|---|---|
| 1071-1010HTRC | 10″ corrugated to 10″ corrugated | 11.60″ | 11.60″ | 6.00″ |
| 1071-12-6HTRC | 12″ corrugated to 6″ corrugated | 14.40″ | 7.20″ | 10.00″ |
| 1071-12-8HTRC | 12″ corrugated to 8″ corrugated | 14.40″ | 9.65″ | 10.00″ |
| 1071-1212HTRC | 12″ corrugated to 12″ corrugated | 14.40″ | 14.40″ | 10.00″ |
| 1071-1515HTRC | 15″ corrugated to 15″ corrugated | 17.70″ | 17.70″ | 10.00″ |
| 1071-1818HTRC | 18″ corrugated to 18″ corrugated | 21.30″ | 21.30″ | 10.00″ |
| 1071-2424HTRC | 24″ corrugated to 24″ corrugated | 28.10″ | 28.10″ | 10.00″ |
| 1071-3030HTRC | 30″ corrugated to 30″ corrugated | 35.40″ | 35.40″ | 10.00″ |
| 1071-3636HTRC | 36″ corrugated to 36″ corrugated | 41.60″ | 41.60″ | 10.00″ |
| 1071-4242HTRC | 42″ corrugated to 42″ corrugated | 47.70″ | 47.70″ | 10.00″ |
| 1071-4848HTRC | 48″ corrugated to 48″ corrugated | 54.10″ | 54.10″ | 10.00″ |
| 1071-5454HTRC | 54″ corrugated to 54″ corrugated | 61.00″ | 61.00″ | 10.00″ |
| 1071-6060HTRC | 60″ corrugated to 60″ corrugated | 66.80″ | 66.80″ | 10.00″ |
*Insert bushing included. **Standard clamps, 60 in-lb. Corrugated pipe outside diameters vary by maker. Measure your pipe and reach out if you’re not sure of the fit.
Five steps.
- Loosen the clampsLoosen the stainless steel clamps. Don’t remove them from the coupling.
- Over the corrugated pipeSlide the coupling over the end of the corrugated pipe, getting the corrugation past the rib inside the coupling.
- Insert the spigotInsert the plain spigot end of the PVC pipe into the other end of the coupling.
- TightenTighten the clamps to 60 in-lb. On Strong Back HTRC, tighten the coupling clamps to 120 in-lb and the shield clamps to 60 in-lb.
- Test and backfillPressure test before backfilling or concealing the joint, to a maximum of 4.3 psi. Bed and backfill properly.
Caution: over tightening the clamp on the corrugated pipe end can collapse the pipe wall.
Specifications.
| Sizes | 3″ to 8″ flexible couplings. Strong Back HTRC shielded 10″ to 60″, additional sizes on request. |
| Connects | 1070: corrugated polyethylene to plastic. 1071: corrugated polyethylene to corrugated polyethylene. |
| Sealing gasket | Flexible PVC. 360° contact on Strong Back HTRC. |
| Clamps | Stainless steel. High torque clamps on Strong Back HTRC. |
| Installation torque | 3″ to 8″: 60 in-lb. Strong Back HTRC: 120 in-lb on the coupling clamps, 60 in-lb on the shield clamps. |
| Shear ring (Strong Back HTRC) | .012″ thick, 300 series stainless steel |
| Maximum test pressure | 4.3 psi (29.6 kPa) |
| Maximum operating temperature | 140°F, non-continuous |
| Standard | ASTM D5926 |
Documents.
Installation instructions, the Strong Back HTRC flyer and the catalog page.
