HTRC Corrugated Pipe Flexible Coupling





corrgugated pipe.jpg

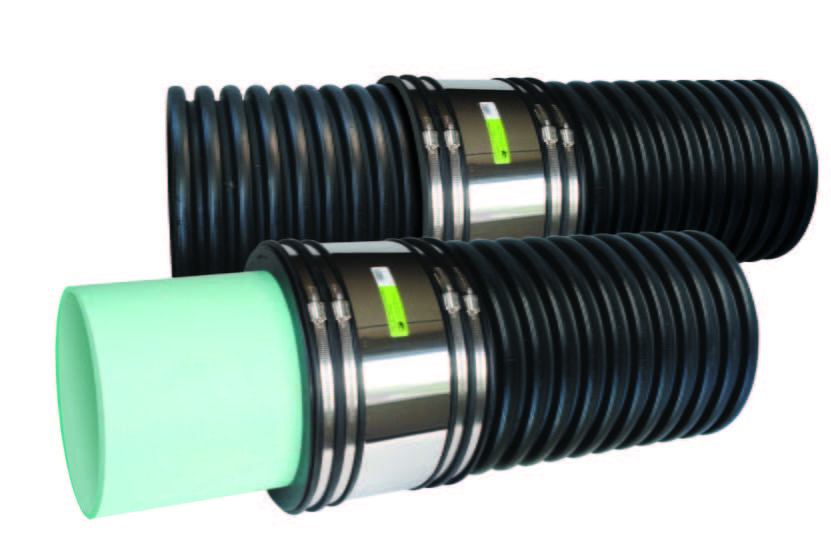

HTRC Corrugated Pipe Flexible Coupling

Large diameter corrugated pipe couplings for 10" to 60"

Designed for a greater sealing force on corrugated pipe. Ideal for gravity flow sewer and storm water systems.

Features

  • Shear resistance- The 0.12" stainless steel shear ring offers a greater sealing force and ensures a water-tight seal
  • Pipe alignment- Because of the shield's thickness, the pipe will remain aligned aganist shear foces from soil compaction, shifting, and settling
  • High torque clamps- Includes 301 series stainless steel clamps that offer sealing power and excellent corrosion resistance
  • Sealing gasket- The gasket's smooth internal wall makes contact 360° over its entire length. This allows a larger sealubg surface and a higher coefficient of friction, providing maxiumum selaing capabilities. *all 10" diamater couplings are 6" wide with 2 clamp areas, and all 12" diameter and larger couplings are 10" wide with 4 clamp areas

Specifications

Gasket

  • Manufactured to meet the material requirements of:
    • CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe
    • ASTM D 5926 - Standard specification for poly vinyl chloride (PVC) gaskets for drain, waste, and vent (DWV), sewer, sanitary, and storm plumbing systems
    • ASTM C 1173 - Standard specification for flexible transition couplings for underground piping systems
  • Hardness, Shore"A", Inst. -+5......................65
  • Tensile Strength, Min. psi ..........................1000
  • Elongation at Rupture, Min. %..................250
  • Tear Strength, Min......................................... 150 lb/in.
  • Brittleness Temperature.............................. -40°F

Clamps

  • Manufactured to the requirements of CSA B602
  • Clamp Housing- 301 Stainless Steel
  • Clamp Band - 301 Stainless Steel
  • Clamp Screw - 305 Stainless Steel
  • Installation torque 120" lbs

Shear Ring

  • .012" Thick, 300 Series Stainless Steel
  • Width manufactured according to coupling width
  • Length manufactured according to coupling diameter
  • Clamps spot welded in place
  • Installation torque 60" lbs

Coupling

  • Manufactured to conform to the performance requirements of:
    • ASTM C 1173 - standard specification for flexible transition couplings for underground piping systems
    • CSA B602 - mechanical couplings for drain, waste, vent pipe and sewer pipe
  • Maximum test pressure: 4.3 PSI (29.6KPA)
  • Maximum operating temperature: 140° F non-consistent

Models

1070 Series- Connecting Corrugated Polyethylene to Plastic
Part No. Side A Side B Width C
  inches mm inches mm inches mm
1070-10-8HTRC 11.6 295 8.4 213 6.0 152
1070-1010HTRC 11.6 295 10.5 267 6.0 152
1070-1210HTRC 14.4 366 10.5 267 10.0 254
1070-1212HTRC 14.4 366 12.5 318 10.0 254
1070-1515HTRC 17.7 450 15.3 389 10.0 254
1070-1818HTRC 21,3 541 18.7 475 10.0 254
1070-2424HTRC 28.1 714 24.8 630 10.0 254
1070-3030HTRC 35.4 899 31.5 800 10.0 254
1070-3636HTRC 41.6 1057 39.4 1001 10.0 254
1070-4242HTRC 47.7 1212 44.5 1130 10.0 254
1070-4848HTRC 54.1 1374 50.8 1290 10.0 254

1071 Series- Connecting Corrugated Polyethylene to Corrugated Polyethylene
Part No. Side A Side B Width C
  inches mm inches mm inches mm
1071-1010HTRC 11.6 295 11.6 295 6.0 152
1071-1212HTRC 14.4 366 14,4 366 10.0 254
1071-1515HTRC 17.7 450 17.7 450 10.0 254
1071-1818HTRC 21.3 541 21.3 541 10.0 254
1071-2424HTRC 28.1 714 28.1 630 10.0 254
1071-3030HTRC 35.4 899 35.4 899 10.0 254
1071-3636HTRC 41.6 1057 41.6 1057 10.0 254
1071-4242HTRC 47.7 1212 47.7 1212 10.0 254
1071-4848HTRC 54.1 1374 54.1 1374 10.0 254
1071-5454HTRC 61.0 1549 61.0 1549 10.0 254
1071-6060HTRC 66.8 1697 66.8 1697 10.0 254
