Corrugated Pipe Couplings
Quickly connect corrugated polyethylene drainage pipe to sewer, drain and DWV plastic piping.
Connect Corrugated Pipe with Confidence

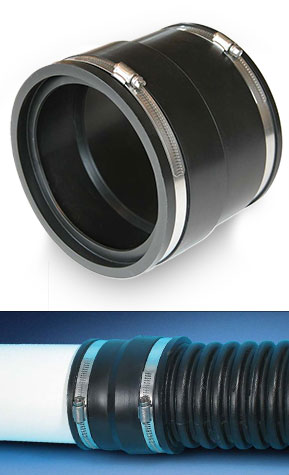

Fernco Corrugated Pipe Couplings provide a flexible transition between corrugated polyethylene drainage pipe and S&D or DWV plastic piping.
They are designed for applications where corrugated polyethylene drainage and irrigation systems need to connect into rigid plastic pipe systems.
Common Applications
Designed for drainage and irrigation systems where corrugated polyethylene pipe transitions to rigid plastic pipe.
Storm Drainage
Sub-Soil Drainage
Farm Irrigation
Residential Drainage
Product Details
Features
- Connects corrugated polyethylene drainage and irrigation systems to sewer and drain or DWV plastic pipe
- Available in 3", 4", 6" and 8" sizes
- Flexible design accommodates differing pipe outside diameters
- Suitable for a variety of drainage and irrigation applications
Technical
- Maximum Test Pressure: 4.3 PSI (29.6 KPA)
- Maximum Operating Temperature: 140° F nonconsistent
- Conforms to: ASTM D5926
Models & Dimensions
Use the dimensions below to identify the appropriate coupling for the pipe sizes being connected.
| Part No. | Side A | Side B | Width C | |||
|---|---|---|---|---|---|---|
| inches | mm | inches | mm | inches | mm | |
| *1070-32 | 3.57 | 91 | 2.38 | 60 | 3.96 | 101 |
| 1070-33 | 3.57 | 91 | 3.44 | 87 | 3.96 | 101 |
| *1070-42 | 4.76 | 121 | 2.38 | 60 | 3.94 | 100 |
| *1070-43 | 4.76 | 121 | 3.38 | 86 | 3.94 | 100 |
| 1070-44 | 4.76 | 121 | 4.29 | 109 | 3.94 | 100 |
| *1070-63 | 6.83 | 173 | 3.38 | 86 | 5.91 | 150 |
| *1070-64 | 6.83 | 173 | 4.38 | 111 | 5.91 | 150 |
| *1070-65 | 6.83 | 173 | 5.50 | 140 | 5.91 | 150 |
| 1070-66 | 6.83 | 174 | 6.50 | 165 | 5.91 | 150 |
| *1070-84 | 9.76 | 248 | 4.38 | 111 | 5.70 | 145 |
| *1070-86 | 9.76 | 248 | 6.38 | 162 | 5.70 | 145 |
| 1070-88 | 9.76 | 248 | 8.42 | 214 | 5.70 | 145 |
Maximum Test Pressure: 4.3 PSI (29.6 KPA)
Maximum Operating Temperature: 140° F nonconsistent
Need Help with a Connection?
Tell us what pipe sizes and materials you're working with and our team can help identify the right Fernco coupling for the application.
