TYGERPatch PipePatch Tee & Wye Lateral Seal A 360° or Top Hat CIPP Tee and Wye lateral system, connecting from the main to the lateral

The TYGERPatch PipePatch Lateral Seal system creates a mainline to lateral seal repair without needing access to the homeowner's property or disrupting live flow in the mainline. The TYGERPatch mechanically bonds to all pipe types.

Once installed, the system forms a smooth transition and  may be used in a wide variety of configurations. The TYGERPatch is designed to extend 6" into the lateral.

Benefits

  • Based on the Foundation of PipePatch
  • Uses PipePatch Silicate Resin
  • Protects against infiltration and exfiltration
  • Seals mainline and lateral connection
  • Consistent ambient cure time
  • NO Dig Lateral Seal System does not disrupt mainline service
  • Used in lined or unlined pipe

Technical Specifications

  • 360° repairs for 4"-6" laterals and 8"-12" mainlines
  • Top Hat repairs for 4"-6" laterals in up to 32" mainline
  • Installation methods include Manual push rod system or Robotic system
  • Pre-packaged kitted system
  • Environmentally safe - contains no VOCs or Styrene
  • Powered by Schwalm USA packers



PipePatch Lateral Seal Equipment
TYGERPatch Lateral Seal Repair Packers
Part No. Description
FPP-PACK-TH4 4” Schwalm rubber LID" Main
FPP-PACK-TH6 6” Schwalm rubber LID
FPP-PACK-TY-6FT 6” Non-flow-fhrough Schwalm packer
FPP-PACK-TY-7 7” Non-flow-through Schwalm packer
FPP-PACK-TY-8 8” Non-flow-through Schwalm packer
FPP-PACK-TY-8FT 8” Flow-through Schwalm packer
FPP-PACK-TY-10-12FT 10”-12” Flow-through Schwalm packer
TYGERPatch Lateral Seal 360° Main Tee Resin Repair Kit
Part No. Description
FPP6X4TEE 4” Schwalm rubber LID
FPP-6X6TEE 6” Schwalm rubber LID
FPP-8X4TEE 6” Non-flow-fhrough Schwalm packer
FPP-8X6TEE 7” Non-flow-through Schwalm packer
FPP-10X4TEE 8” Non-flow-through Schwalm packer
FPP-10X6TEE 8” Flow-through Schwalm packer
FPP-12X4TEE 10”-12” Flow-through Schwalm packer
FPP-12X6TEE 12” x 6” TYGERPatch Tee Kit
TYGERPatch Lateral Seal 360° Main Tee Resin Repair Kit
Part No. Description
FPP-6X4WYE 6” x 4” TYGERPatch Wye Kit
FPP-6X6WYE 6” x 6” TYGERPatch Wye Kit
FPP-8X4WYE 8” x 4” TYGERPatch Wye Kit
FPP-8X6WYE 8” x 6” TYGERPatch Wye Kit
FPP-10X4WYE 10” x 4 TYGERPatch Wye Kit
FPP-10X6WYE 10” x 6” TYGERPatch Wye Kit
FPP-12X4WYE 12” x 4” TYGERPatch Wye Kit
FPP-12X6WYE 12” x 6” TYGERPatch Wye Kit
TYGERPatch Lateral Seal Top Hat Main Tee Resin Repair Kit
Part No. Description
FPP-4T-TH 4” TYGERPatch Top Hat Tee Kit
FPP-5T-TH 5” TYGERPatch Top Hat Tee Kit
FPP-6T-TH 6” TYGERPatch Top Hat Tee Kit
Top Hat Wye Resin Repair Kit
Part No. Description
FPP-4Y-TH 4” TYGERPatch Top Hat Wye Kit
FPP-5Y-TH 5” TYGERPatch Top Hat Wye Kit
FPP-6Y-TH 6” TYGERPatch Top Hat Wye Kit
Lateral Seal Equipment
Part No. Description
FPP-REG-LAT Regulator For Schwalm System
FPP-RESINGUN Resin Gun For Schwalm System
FPP-AIRHOSE150 150’ Air Hose For Schwalm Packer
FPP-PUSHROD-P Schwalm Pushrod-Puck Connection
FPP-PUSHROD-TY Schwalm 5’ Steel Push Rod
Lateral Seal 360° Main Tee Resin Repair Kit
Part No. Description
I-TYCABLE 100’ Coax Cable
I-TYCAMSYSTEM Manual System Camera

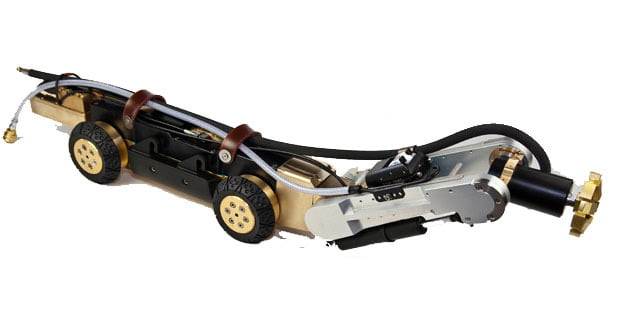

Cutter System Schwalm Robotic Cutter
Schwalm Robotic Cutter
For more information on the Schwalm Robotic Cutter, please contact S1E at (877) 450-3701
