Eccentric Series
Maintain a continuous flowline when connecting pipes with different outside diameters in critical grade conditions.
Designed Around the Flowline

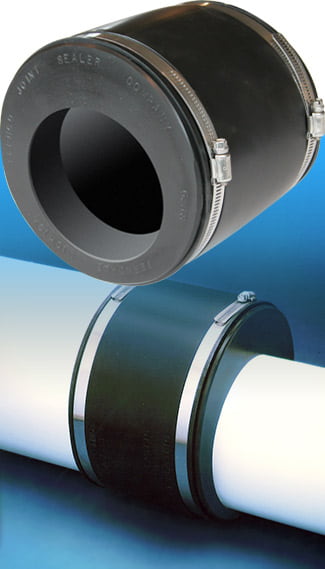

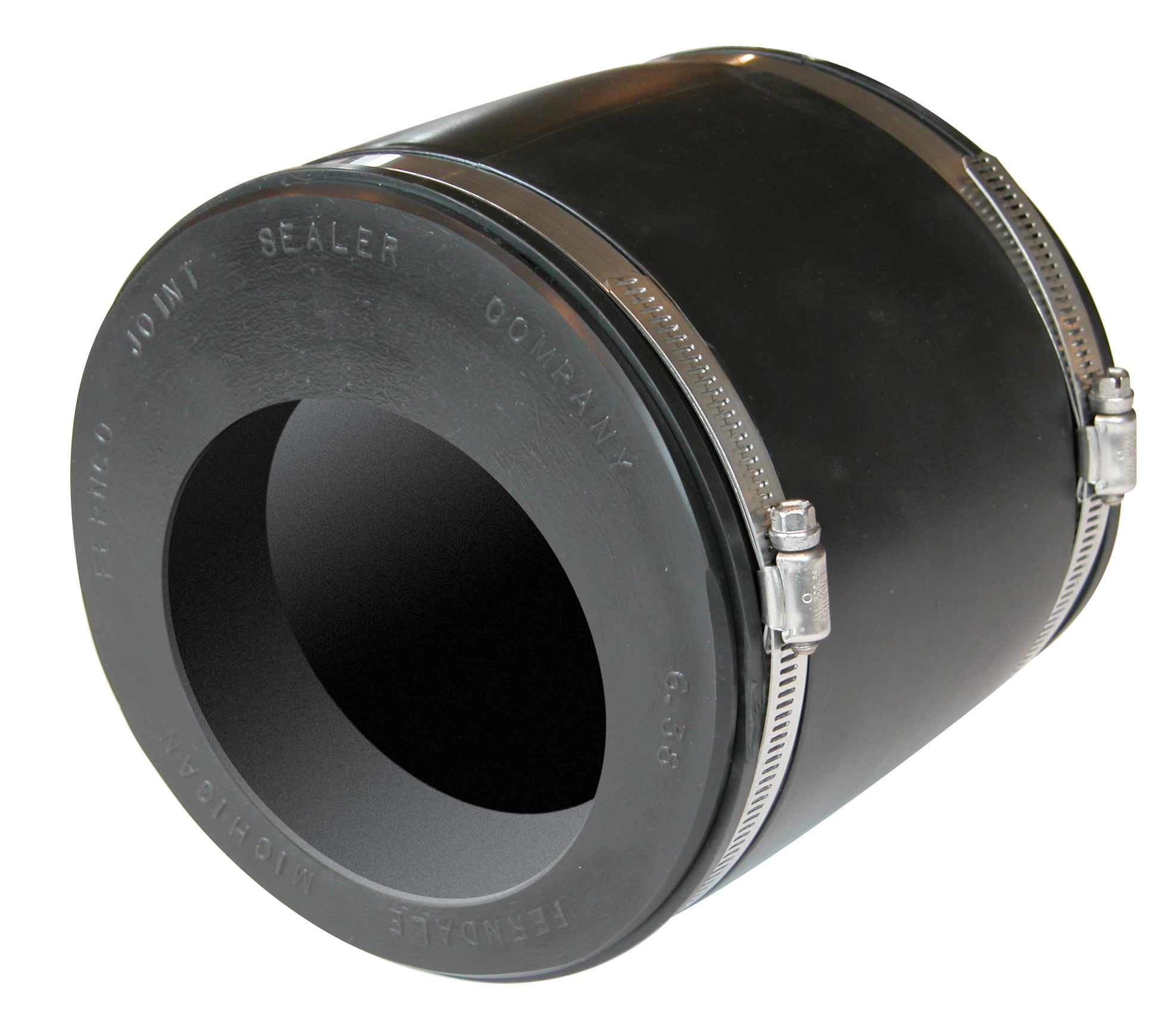

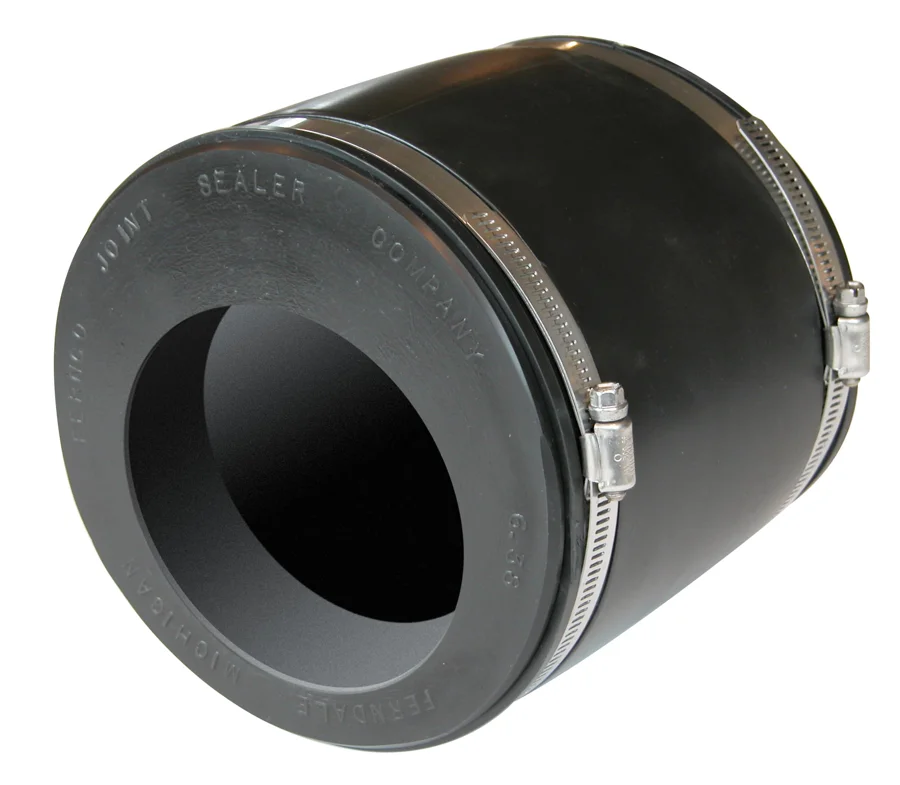

Fernco Eccentric Couplings are designed for applications where maintaining the internal pipe flowline is critical.
The eccentric design aligns the inside walls of pipes with differing outside diameters, helping create a smooth transition through the connection.
Keep the Inside Walls Aligned

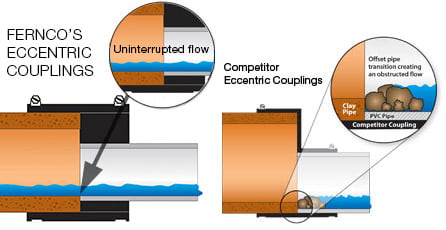

A standard centered transition can create an offset at the bottom of the pipe when the connected pipes have different outside diameters.
The Fernco Eccentric Series positions the connection to align the interior flowline, reducing obstruction through the transition and helping maintain proper gravity flow.
Product Details
Features
- Aligns the inside walls of pipes with differing outside diameters
- Helps maintain an obstruction-free flowline
- Designed for critical-grade drainage applications
- Meets ASTM C1173 and ASTM D5926
- 300 Series stainless steel clamps
Technical
- Maximum Test Pressure: 4.3 PSI (29.6 KPA)
- Maximum Operating Temperature: 140° F non-consistent
- Configuration: Two-piece coupling and bushing combination on most models
Eccentric Series Options
Select the series based on the pipe materials being connected. Additional applications may also be available or custom ordered.
Clay to Cast Iron or Plastic
Concrete to Cast Iron or Plastic
Ductile Iron to Cast Iron or Plastic
Ductile Iron to Ductile Iron
Cast Iron, Plastic, Copper, Steel or Lead to Cast Iron, Plastic, Copper, Steel or Lead
Need Help with an Eccentric Connection?
Tell us the pipe materials and sizes you're connecting and our team can help identify the appropriate Eccentric Series configuration.
